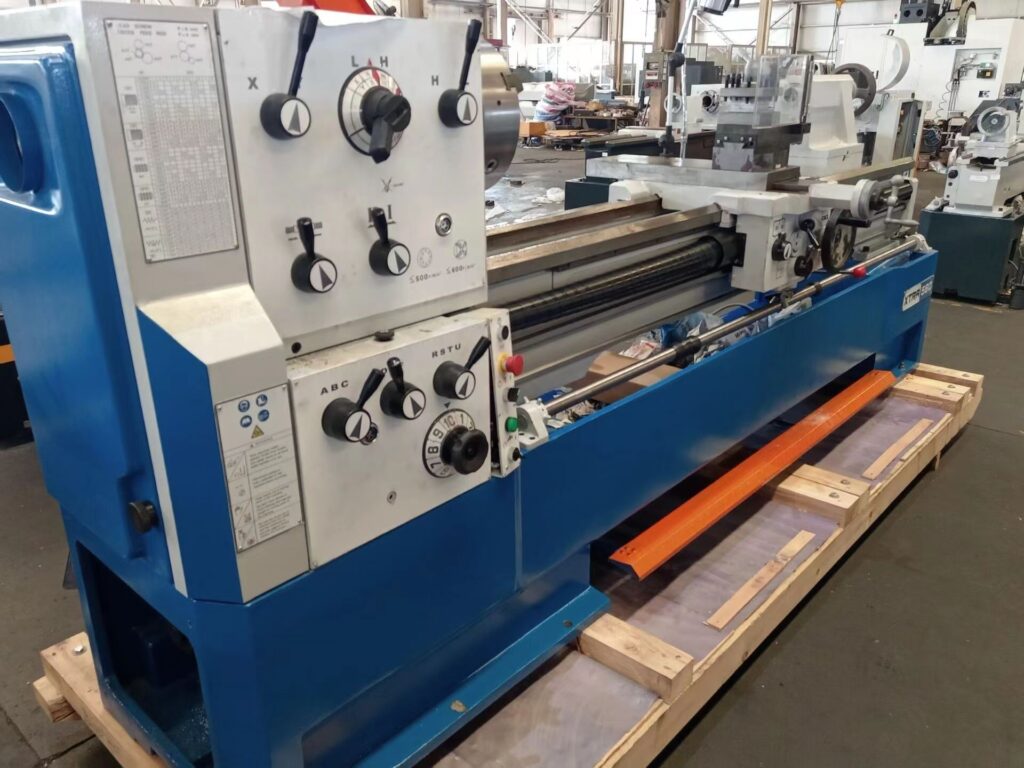

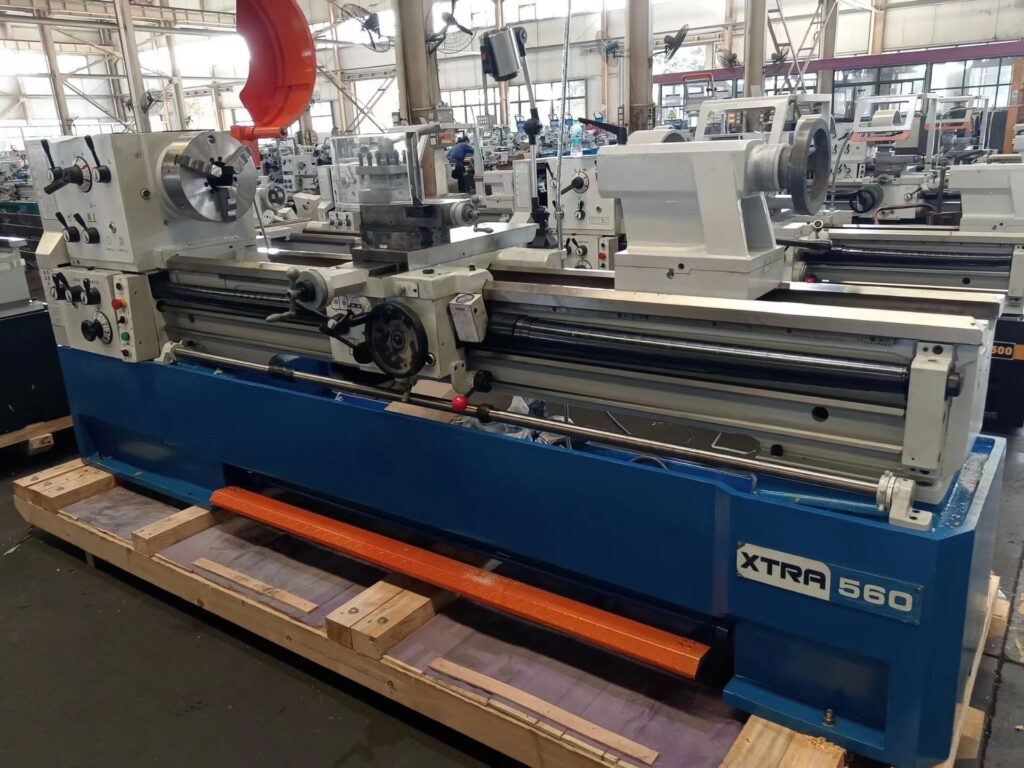

c6280 lathe

c6280 lathe

  The C6280 lathe is a high-performance heavy-duty common lathe that plays a vital role in large-scale machining operations, and it is widely favored by industries such as machinery manufacturing, energy, and shipbuilding. Unlike small and medium-sized lathes, this model is specifically designed to handle large-diameter and heavy workpieces, which means it can process components with a maximum turning diameter of up to 800mm, making it an ideal choice for producing key parts like large shafts, flanges, and bearing seats. Moreover, the C6280 lathe is not only suitable for mass production in professional factories but also meets the needs of customized machining in repair and maintenance workshops, as it can adapt to different processing requirements with its flexible operation. In addition, its stable performance and long service life help businesses reduce production costs and improve work efficiency, thus becoming a core equipment in many industrial production lines.

if you want to know more device, please visit

c6280 conventional lathe feature

    The C6280 lathe stands out in the market due to its outstanding features, and first of all, its bed adopts high-strength cast iron material that has undergone aging treatment, which effectively reduces deformation caused by temperature changes and ensures stable operation during long-term heavy-load processing. Secondly, the lathe is equipped with a high-torque spindle system, which is matched with precision gears and bearings, so it can maintain high rotational accuracy even when processing heavy workpieces, thereby guaranteeing the surface quality and dimensional accuracy of the finished products. Furthermore, the feed system of the C6280 lathe provides multiple speed ratios, and this allows operators to adjust the feed rate according to different materials and processing techniques, whether it is rough machining with fast material removal or fine machining with high precision. Besides, the lathe is also equipped with a reliable lubrication system that automatically lubricates key components, which not only reduces wear and tear but also extends the service life of the equipment, bringing more long-term benefits to users.

c6280 lathe Parameter

MACHINE

TOOL TYPE

C6266

C6280

CAPACITY

Swing Over

Slide

Φ660mm

Φ800mm

Swing Over

Cross Bed

Φ440mm

Φ570mm

Swing in Gap

Φ900mm

Φ1035mm

Length of Gap

250mm

Center Height

330mm

400mm

Distance

Between Centers

1500mm/2000mm/3000mm/4000mm

Width of Bed

400mm

400mm

Max. Section of Tool

25mm × 25mm

Max. Travel of Cross Slide

368mm

420mm

Max. Travel of  Compound Rest

230mm

230MM

HEADSTOCK

Spindle Bore

Φ105mm

Spindle Nose

D1-8

Taper of Spindle Bore

Φ113mm( 1:20)/MT5

Spindle Speed

Step

16

Range of

Spindle Speed

25~1600rpm

25~1600rpm

FEEDS AND THREADS

Leadscrew Pitch

Φ40mm×2T.P.I. or Φ40mm×12mm

Inch Threads

Range

7/ 16~80T.P.I. (54 kinds)

Metric Threads Range

0.45~120mm (54 kinds)

Diametrical

Pitches Range

7/8~160DP (42 kinds)

Module Pitches Range

0.25~60MP (46 kinds)

Longitudinal     Feeds Range in Metric Lead

Screw



0.044~1.48mm/rev (25 kinds)

Longitudinal

Feeds Range in   Inch Lead Screw

0.00165″~0.05497″/rev (25 kinds)

Cross Feeds

Range in Metric Lead Screw



0.022~0.74mm/rev (25 kinds)

Cross Feeds

Range in Inch

Lead Screw

0.00083″~0.02774″/rev (25 kinds)

TAILSTOCK

Travel of

Tailstock Sleeve

235mm

Dia. of Tailstock Sleeve

Φ90mm

Morse Taper of  Tailstock Sleeve

MT5

MOTOR

Power of Main Motor

7.5kW( 10HP)

11kW ( 15HP)

Power of

Coolant Pump

0.09kW ( 1/8HP)

DIMENSION AND WEIGHT



Machine size

321× 123cm×160cm 371X123X160cm

471x123x160cm

321x123x167cm

371x123x167cm

471x123x167cm



Packing Size

324x114x184cm

374x114x184cm

474x114x184cm

324x114x191cm

374x114x191cm

474x114x191cm



Net Weight

3065kg

3345kg

3710kg

3175kg

3455kg

3820kg



Gross Weight

3535kg

3835kg

4310kg

3695kg

4005kg

4405kg

3.STANDARD ACCESSORIES



No

C6266 (Standard Accessories)

C6280 (Standard Accessories)

Quantity

1

3-jaws self centering chuck   315mm

3-jaws self centering chuck   315mm

1 Pcs

2

4-jaws independent chuck    400mm

4-jaws independent chuck    400mm

1 Pcs

3

Foot brake (3m below has)

Foot brake(3m below has)

1 Set

4

Steady rest Φ 20-190mm

Steady rest Φ 10-130mm

1 Pcs

5

Follow rest Φ 20-130mm

Follow rest Φ 10-100mm

1 Pcs

6

Face Plate

Face Plate

1 Pcs

7

Auto lubrication system

Auto lubrication system

1 Pcs

8

Full length splash guard

(3m below has)

Full length splash guard (3m below has)

1 Pcs

9

Operational Manual;dead center

Operational Manual;dead center

1 Pcs
